Reliable HLS playback is less about one magic player and more about how the stream is packaged, delivered, and detected at runtime. The difference between a video that starts quickly and one that stalls usually comes down to segment timing, codec choices, playlist structure, and whether the browser is using native support or a Media Source Extensions player. In this guide, I focus on the parts that matter in production: how HLS works, what a clean stream needs, which playback path to choose, and how to debug the failures that show up most often.
The essentials that make HLS behave well
- HLS is a manifest-driven stream, so the playlist structure matters as much as the media files themselves.
- 4 to 6 second segments are a practical default for most builds, because they balance latency, overhead, and recovery time.
- Safari can play HLS natively, while many other browsers need a JavaScript player such as hls.js or Video.js with VHS.
- Aligned keyframes and clean rendition ladders reduce buffering, bad switches, and audio/video drift.
- Low-latency HLS can cut delay dramatically, but it is less forgiving and needs tighter encoder and CDN discipline.
- Validation is non-negotiable, because most failures are caused by packaging or delivery mistakes, not the video tag itself.

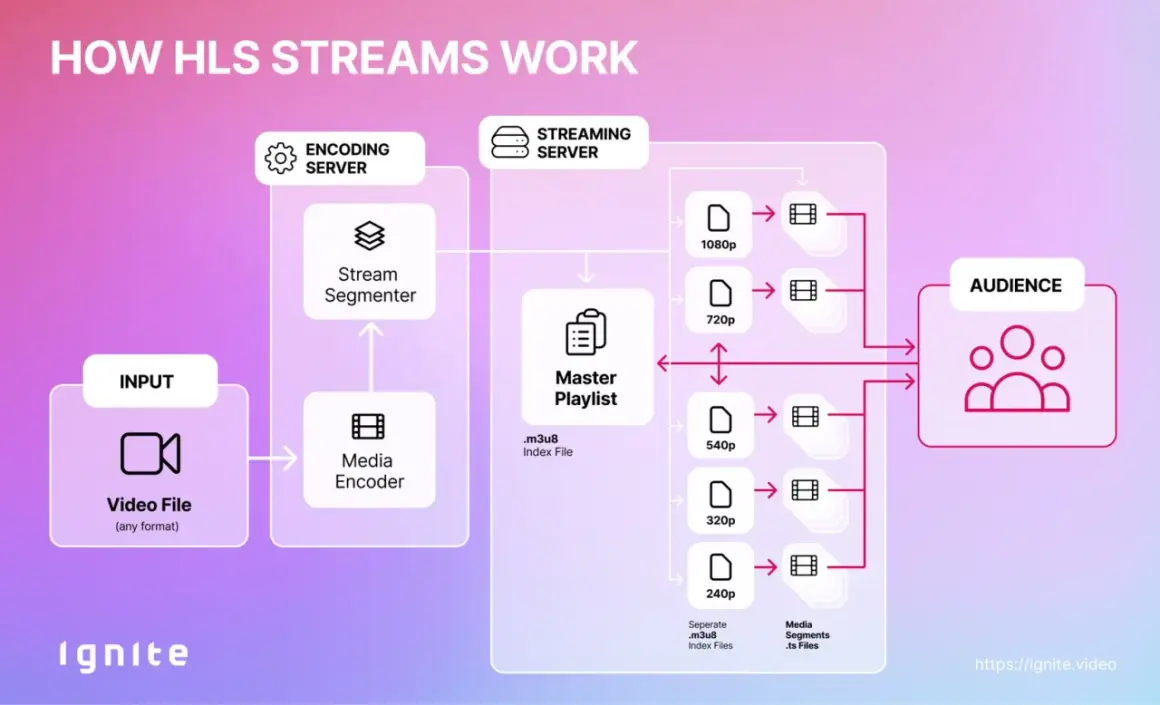

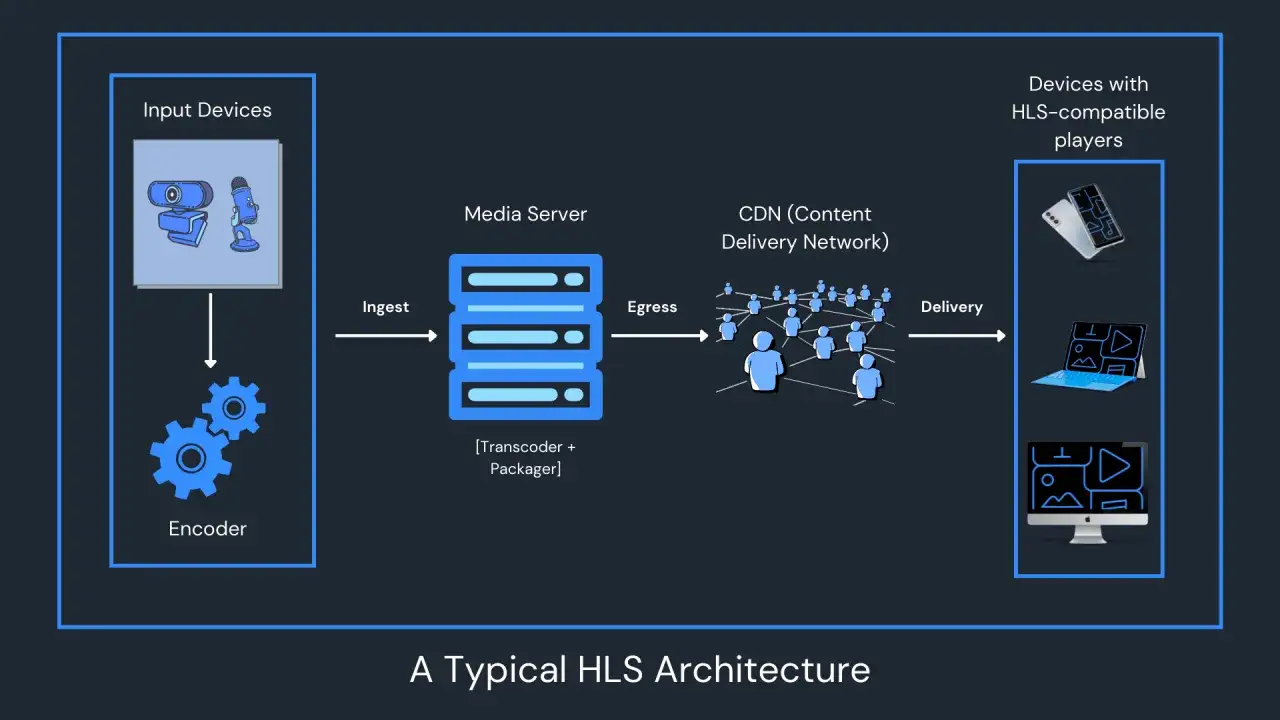

How HLS delivers the stream to the player
At a practical level, HLS turns one video into a control file and a set of small downloadable pieces. A master playlist points to one or more variant playlists, and those variant playlists point to media segments. The player keeps fetching new segments over HTTP, then switches between quality levels when bandwidth or buffer conditions change.I like to think of it as a feedback loop rather than a file format. The player watches throughput, buffer health, and recent download speed, then makes a bet on which rendition is safe to fetch next. That is why HLS feels stable on weak networks when it is authored well, and frustrating when the stream is poorly segmented or the ladder is too aggressive.
The manifest is the control plane
The manifest is where most of the intelligence lives. It tells the player which renditions exist, where the audio and subtitle tracks are, and how the live window is moving. For VOD, the playlist is static. For live streams, it behaves like a sliding window, so older segments fall away while new ones appear at the end.
Read Also: Live Streaming Protocols - Choose the Right One for Your Needs
Adaptive bitrate is what keeps the video moving
Adaptive bitrate selection is the mechanism that lets a stream recover from changing network conditions without freezing completely. When the next segment is slower to download than expected, the player can drop to a lower rendition before the buffer empties. When conditions improve, it can climb back up. That is the part that makes HLS useful for mobile viewers, especially on variable Wi-Fi and cellular connections.
That control loop explains why the stream structure matters so much, which is exactly what I look at next.
What a stream needs to play cleanly
Most playback problems start before the browser ever sees the video tag. If the segments, timestamps, codecs, and playlists are not aligned, the player spends its time compensating for avoidable mistakes. In my experience, a stream that looks “close enough” in the encoder often fails in the browser for one of a handful of predictable reasons.
| Setting | Practical target | Why it matters |
|---|---|---|
| Segment duration | 4 to 6 seconds | Gives a workable balance between start-up time, latency, and request overhead. |
| Keyframes | Align them with segment boundaries | Makes quality switches and seeking much more reliable. |
| Rendition ladder | 3 to 5 video rungs to start | Gives the ABR engine enough choice without bloating encoding and CDN costs. |
| Codec baseline | H.264 video with AAC audio for widest reach | Still the safest combination for broad browser and device compatibility. |
| Playlist hygiene | Consistent tags, valid target duration, clean discontinuities | Prevents parsing errors and live-edge drift. |
Independent segments are worth the effort. If a segment can be decoded without leaning on the previous one, switches are cleaner and recovery from a dropped packet is easier. I also pay attention to playlist consistency across renditions, because one bad audio or subtitle track can make the whole experience feel broken even when the video itself is fine.
For live output, I keep the window long enough to survive brief network jitter, but not so long that the audience drifts far behind the action. That trade-off becomes even more important when latency is part of the product promise, and I will come back to that later.
Once the media itself is stable, the next decision is which player path to use on each browser.
Native support or a JavaScript player
This is where a lot of teams overcomplicate things. On Apple platforms, Safari can handle HLS natively, which is usually the cleanest and most battery-friendly route. On other browsers, especially when you want consistent control or richer diagnostics, a JavaScript player built on Media Source Extensions is often the better choice.
| Option | Best fit | Strengths | Trade-offs |
|---|---|---|---|
| Native HLS in Safari | iPhone, iPad, macOS, and Apple TV style delivery | Simple source URL, efficient playback, less JavaScript overhead | Less visibility into internals, browser-specific behaviour, fewer custom hooks |
| hls.js | Cross-browser web playback with MSE support | Good control, broad reach, mature open-source player path | Requires JavaScript, MSE support, and correct packaging |
| Video.js with VHS | Teams that want a player UI plus protocol support | Built-in UI layer, fallback handling, widely used in production | Another abstraction layer to tune and maintain |
I do not trust canPlayType on its own. It is a hint, not a guarantee. A browser may report that it understands HLS but still fail on a real stream if the codecs, segments, or playlist structure are off. For modern Safari, I prefer native playback when the platform support is there; elsewhere I fall back to hls.js or a Video.js-based setup.
The key point is simple: if a platform has neither native HLS nor Media Source Extensions, it cannot play the stream reliably in the browser. That is why compatibility planning matters before you wire up the UI.
That choice shapes the setup code and runtime handling, so I move from theory to implementation next.
A setup I would use on a website
If I were wiring this into a public site, I would keep the implementation boring and explicit. The stream should load from a CDN or origin that sends the correct headers, the player should choose a path based on actual capabilities, and the page should expose enough controls to recover from the inevitable bad network moment.
- Serve the master playlist, media playlists, and segments with correct CORS behaviour when the assets are on another domain.
- Use feature detection instead of guesswork, and choose one playback path for native Safari and another for MSE-based browsers.
- Add sensible media defaults such as
playsinline,preload="metadata", and a poster image so the first frame feels intentional. - Listen for fatal errors and rebuild the player when the stream drops into an unrecoverable state.
- Track startup time, rebuffer events, rendition switches, and live latency so you can see where the experience is degrading.
const video = document.querySelector('video');
const src = '/streams/master.m3u8';
if (Hls.isSupported()) {
const hls = new Hls();
hls.loadSource(src);
hls.attachMedia(video);
hls.on(Hls.Events.ERROR, (event, data) => {
if (data.fatal) {
hls.destroy();
}
});
} else if (video.canPlayType('application/vnd.apple.mpegurl')) {
video.src = src;
}That snippet is intentionally plain. The point is not clever code, it is predictable behaviour. If the stream is valid, the player should start quickly. If the network collapses, the player should fail visibly and recover cleanly rather than limping along in an undefined state.
Once the player is wired in, the real work is spotting the few failure modes that account for most playback complaints.
The failures I see most often and how I triage them
When a stream works on one device and fails on another, I start with packaging and delivery, not the UI. In practice, the biggest issues are usually CORS, MIME types, codec mismatches, broken keyframe alignment, or a rendition ladder that is too optimistic for the audience.
| Symptom | Likely cause | What I check first |
|---|---|---|
| Video loads but never starts | Bad playlist, unsupported codec, or missing cross-origin access | Validate the master playlist, codecs, and response headers. |
| Works in Safari, fails in Chrome or Firefox | No MSE fallback or weak browser detection | Confirm the hls.js or Video.js path is actually being used. |
| Buffering every few seconds | Segments are too long, CDN latency is too high, or the ladder is too shallow | Check segment duration, origin response times, and available bitrates. |
| Audio and video drift apart | Encoder drift or bad timestamp alignment | Inspect GOP alignment and re-encode with cleaner timestamps. |
| Black frame after a quality switch | Non-independent segments or keyframes do not line up | Align keyframes with the segment cadence and mark independent segments where possible. |
| Live stream feels late | Buffer targets are too deep or low-latency mode is not configured | Reduce the buffer margin and confirm the live playlist behaviour. |
The thing I keep coming back to is validation. Apple’s media stream validator is useful because it catches structural problems before viewers do. It will not fix a bad encoder or a slow CDN, but it does eliminate a large class of packaging mistakes that are easy to miss in manual testing.
When the stream fails only under load, I assume the player is exposing a weakness in the pipeline rather than creating one. That framing usually gets the team to the real fix faster.
The low-latency decision only makes sense when delay is truly a product requirement, so I separate that trade-off on purpose.
When low-latency delivery is worth the trade-offs
Low-latency HLS exists for cases where the delay between capture and viewer matters more than absolute robustness. Sports, live auctions, interactive events, live commerce, and moderated Q&A sessions all benefit when the audience is only a couple of seconds behind the source. Apple has shown that sub-two-second latency is achievable over public networks at scale when the setup is done correctly, but that result comes with tighter operational constraints.
- Use low-latency HLS when real-time reaction changes the product experience.
- Stay with standard HLS when a few extra seconds of delay do not hurt the use case.
- Expect more sensitivity to CDN jitter, encoder timing, and playlist reload behaviour.
- Monitor more closely because smaller buffers leave less room for error.
I would not push every stream into low-latency mode just because it sounds modern. If the audience is watching a lecture, a product demo, or an archive clip, conventional HLS is usually the safer and calmer choice. Low-latency delivery is excellent when delay is part of the business problem, but it is also the easiest way to expose weak assumptions in the rest of the pipeline.
Before you go live, I run a short, ruthless checklist that catches most regressions before viewers see them.
What I would check before shipping the stream live
If the goal is a stream that feels dependable rather than merely functional, I test the same content in the same order every time. The differences between a good launch and a support headache are often small: one missing header, one bad segment boundary, one browser path nobody tested on a real device.
- Test on Safari for iPhone, Safari for macOS, Chrome, and Firefox.
- Check behaviour on one slower mobile connection and one stable broadband connection.
- Confirm the live playlist advances correctly and that VOD ends cleanly with
EXT-X-ENDLIST. - Verify captions, alternate audio, and poster images before launch day.
- Run Apple’s media stream validator on the packaged output, not just on the source files.
- Watch startup time, rebuffer ratio, quality switches, and live latency after release.
When those checks pass, HLS playback usually feels boring in the best possible way: quick to start, stable on mixed networks, and predictable across devices. That is the standard I use before I call a stream production-ready.
