Key points you need before you build or debug an HLS stream
- An M3U8 file is a UTF-8 text playlist, not the video itself.
- Master playlists choose between variants; media playlists list the actual segments.
- Standard HLS often uses 4 to 6 second segments, while low-latency HLS can use partial segments around 200 milliseconds.
- Live playlists need tight cache control, or playback can drift behind the broadcast.
- Safari handles HLS natively; many other desktop browsers need a JavaScript player such as HLS.js.
What an M3U8 file actually does
When I inspect a stream, I start with the playlist because it tells me how the whole delivery chain is supposed to behave. The M3U8 file is a plain-text manifest. It does not contain the picture or soundtrack. It contains references to segment files and the metadata the player uses to decide what to request next.

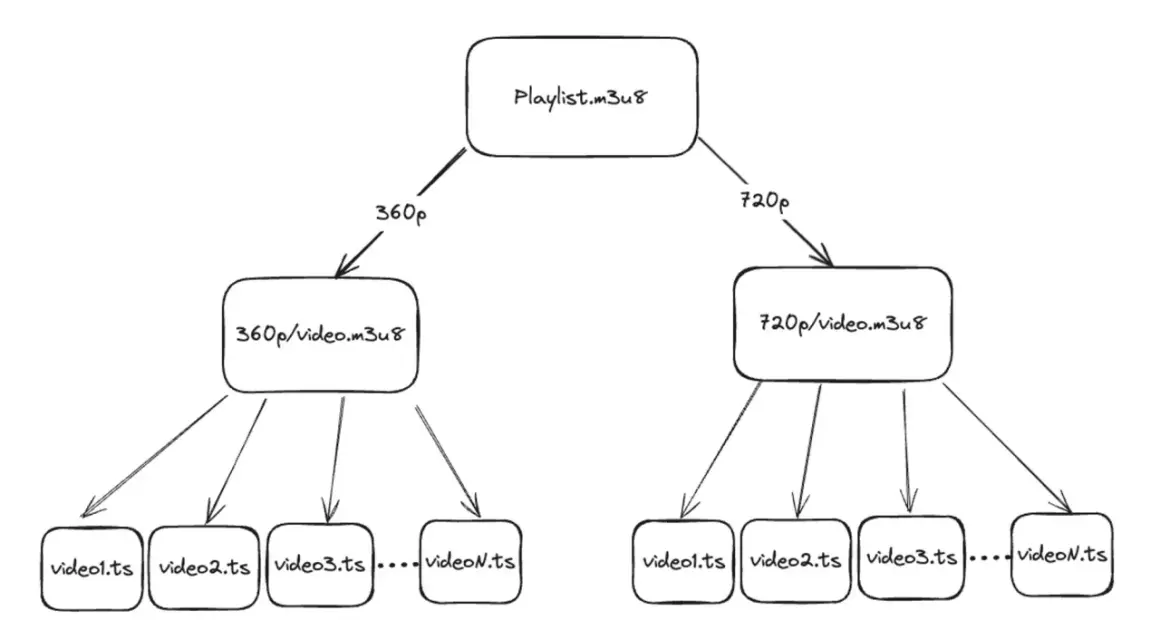

There are two layers worth separating in your head. A master playlist points to variants such as different bitrates, resolutions, audio tracks, or subtitle groups. A media playlist lists the actual chunks of video or audio that should be fetched in sequence. That distinction matters because many playback problems are really control-plane problems, not codec problems.
| Playlist type | What it contains | Why it matters |
|---|---|---|
| Master playlist | Variant playlists for different bitrates, codecs, audio tracks, or subtitles | Lets the player choose the best rendition for the device and network |
| Media playlist | Ordered media segments plus timing and stream metadata | Drives actual playback, buffering, and live updates |
Apple’s current HLS guidance still frames the manifest as the control point between the encoder and the player, and that is the right mental model to keep. Once that clicks, the tag syntax starts to feel much less mysterious, which is where I go next.
How the playlist is structured
The syntax is simple once you recognise the pattern. A playlist starts with a header, then alternates between metadata tags and segment references. In most production stacks today, the media itself is delivered as either classic transport stream chunks or CMAF-style fragmented MP4, but the playlist still plays the same role: it maps time to fetchable files.
#EXTM3U
#EXT-X-VERSION:7
#EXT-X-TARGETDURATION:6
#EXT-X-MEDIA-SEQUENCE:1024
#EXTINF:6.006,
segment1024.ts
#EXTINF:6.006,
segment1025.ts
#EXTINF:6.006,
segment1026.ts
#EXT-X-ENDLISTHere is what those tags mean in practice:
-
#EXTM3Umarks the file as an extended M3U playlist. -
#EXT-X-VERSIONsignals which HLS features the playlist uses. -
#EXT-X-TARGETDURATIONshould reflect the longest segment duration in the playlist. -
#EXTINFgives the duration of each segment. -
#EXT-X-MEDIA-SEQUENCEis important for live streams because it tells the player where the list starts. -
#EXT-X-ENDLISTmarks a finished VOD playlist rather than an open-ended live feed.
For low-latency delivery, newer playlists can also include partial-segment tags such as #EXT-X-PART and preload hints so the player can begin fetching data before a full segment is complete. That is where HLS starts to feel very different from older progressive delivery, because time becomes a first-class part of the file format rather than an afterthought.
How HLS keeps video playable on unstable networks
The real strength of HLS is not that it streams video. It is that it can change quality without breaking playback. A good player watches bandwidth, buffer depth, and device capability, then switches to a lower or higher variant as conditions change. That is why a stream can survive a crowded Wi-Fi connection, a mobile handover, or a brief CDN slowdown without forcing the viewer to restart.
For that to work cleanly, the ladder has to be authored with care. Renditions should be aligned on key frames, often referred to as I-frames, so the player can switch cleanly between variants. If segment boundaries are sloppy, quality changes can produce visible stutters, even when the playlist itself is valid.
Segment duration is part of that trade-off. In many live workflows, 4 to 6 seconds is a practical default. Shorter segments reduce join time and can help latency, but they raise overhead and make the stream more sensitive to encoder and network timing. Longer segments are steadier, but they add delay. Low-Latency HLS narrows that gap further, and in well-tuned deployments it can get the glass-to-glass delay down to under two seconds.
That is why I never treat latency as a single switch. It is the result of encoder settings, segment cadence, playlist refresh rate, CDN behaviour, and player logic working together. If one of those pieces is off, the whole experience feels slower than it should.
What the player and delivery stack need
On the web, the playlist is only half the job. The player and delivery stack matter just as much. Safari can read HLS natively, while many other desktop browsers rely on Media Source Extensions and a JavaScript layer such as HLS.js. MDN’s streaming guide makes the same practical point: HLS is about giving the player multiple versions of the same media so it can adapt in real time.
If I were checking a deployment, I would look for these basics first:
- The manifest is reachable over HTTPS.
- Segment URLs resolve correctly from the playlist location.
- CORS headers allow the playlist, media segments, and key requests if the content is cross-origin.
- The MIME type is sensible for playlists and media objects.
- Encrypted streams can fetch their keys without being blocked by auth or cache rules.
- Alternate audio, captions, and subtitle tracks are mapped cleanly if they are part of the workflow.
One detail that gets overlooked is caching. Live playlists change constantly, so the changing index should not sit in cache for longer than the segment cadence. If the manifest is stale, the player can appear to freeze even when the encoder and origin are healthy. In other words, a “video problem” can be a cache-control problem.
That is also where live and on-demand delivery start to diverge, because the same playlist mechanics behave differently depending on whether the stream is still growing or already complete.
The mistakes that usually break playback
Most HLS failures are boring once you find them, which is exactly why they are so frustrating. The stream looks fine in the encoder, the player loads, and then something small in the playlist or delivery path causes the trouble. I usually work from the symptom back to the manifest.
| Symptom | Likely cause | What usually fixes it |
|---|---|---|
| The stream starts, then stalls a few seconds later | Live playlist refreshes too slowly, or the CDN is caching the changing manifest too aggressively | Shorten cache lifetime and verify that new segments are published on time |
| Quality never switches | No proper variant ladder, bad bandwidth metadata, or the player only sees one rendition | Check the master playlist and confirm every variant is listed correctly |
| Audio plays but video is black | Codec mismatch, broken track mapping, or unsupported video settings in the target player | Test codec compatibility and verify the media pipeline end to end |
| Segments return 404 errors | Relative paths are wrong, files were moved, or the origin and CDN are out of sync | Inspect the URLs exactly as the player sees them, not just as they appear in the encoder |
| VOD never settles cleanly |
#EXT-X-ENDLIST is missing, sequence numbers are off, or the file is being treated like a live stream |
Close the playlist properly and revalidate the sequence order |
The fastest fix is often the least glamorous one: open the manifest in a text editor, follow the first few URLs manually, and compare that against the network trace in the player. If the playlist is wrong, the player is usually innocent.
HLS versus MPEG-DASH in real delivery workflows
People often ask whether HLS has a direct replacement. In practice, the answer is usually not either-or. HLS and MPEG-DASH solve the same broad problem, but they differ in packaging, ecosystem support, and how much platform-specific tuning you want to do.
| Criteria | HLS | MPEG-DASH |
|---|---|---|
| Manifest format | M3U8 text playlists | MPD XML manifests |
| Best-known ecosystem | Strongest in Apple environments and widely supported across streaming platforms | Popular in many custom player and multi-platform delivery stacks |
| Latency options | Standard HLS is resilient; Low-Latency HLS narrows the delay significantly | Low-latency modes exist, but implementation details vary more by platform |
| Operational simplicity | Very friendly to ordinary web servers and CDNs | Also CDN-friendly, but often used alongside more custom playback logic |
| Typical production choice | Apple-first or broad consumer streaming delivery | Platform-neutral workflows, often paired with HLS for coverage |
What I see in the field is simple: many teams generate both, because the cost of excluding a device is usually higher than the cost of maintaining two manifests. If your delivery stack already handles CMAF packaging cleanly, the operational gap between the two becomes even smaller, which makes the decision more about playback reach than about ideology.
The checks I would run before going live
When I review hls m3u8 setups, I look for the same small set of details every time, because they are the ones that save the most time under pressure. If these are correct, the rest of the stream is usually a matter of tuning rather than rescue work.
- Verify that the master playlist loads first and points to every intended variant.
- Confirm that the first media segment is available before the player asks for it.
- Keep segment durations consistent across renditions.
- Make sure live playlists update at the same pace as the encoder publishes new chunks.
- Test at least one native HLS player and one browser that needs JavaScript playback support.
- Check captions, alternate audio, and encryption keys before traffic arrives.
The most reliable streams are not the ones with the fanciest codec settings. They are the ones where the playlist, the encoder, the CDN, and the player all agree on timing. If you keep that alignment tight, HLS stays boring in the best possible way, and in streaming work that is usually what you want.
