RTSP Live Streaming - Still Relevant? The Full Guide

RTSP live streaming still matters because it solves a very specific problem well: getting a live camera or encoder feed into a controlled workflow with predictable session control and low overhead. In this article, I break down how it works, where it fits beside HLS and WebRTC, and how to build a setup that is reliable in production rather than just workable in a lab. The practical point is simple: RTSP is excellent for ingest and monitoring, but it is usually not the format your audience should watch directly.

What RTSP actually does in a live workflow

RTSP is best understood as the session-control layer, not the thing that does all the heavy lifting. It tells a camera, encoder, or server when to start, pause, resume, or stop a stream, while the actual media commonly moves over RTP with RTCP feedback in the background. That split matters because it explains why the protocol can feel light and responsive while still depending heavily on the transport and buffering around it.

In other words, I treat RTSP as a remote control for live media. It is useful when I need to connect devices quickly, establish a session cleanly, or pull a feed from hardware that already speaks the protocol natively.

Layer	What it does	Why it matters
RTSP	Sets up and controls the session	Lets devices start, pause, resume, and stop cleanly
RTP	Carries the media packets	Moves the encoded audio and video
RTCP	Returns timing and quality feedback	Helps the system cope with loss, jitter, and sync

That separation is what makes RTSP efficient for device-to-infrastructure links. It does not try to solve browser playback, large-scale distribution, or packaging on its own, which is why the next question is always where the feed sits in the broader broadcast chain.

Where RTSP fits in a live broadcast stack

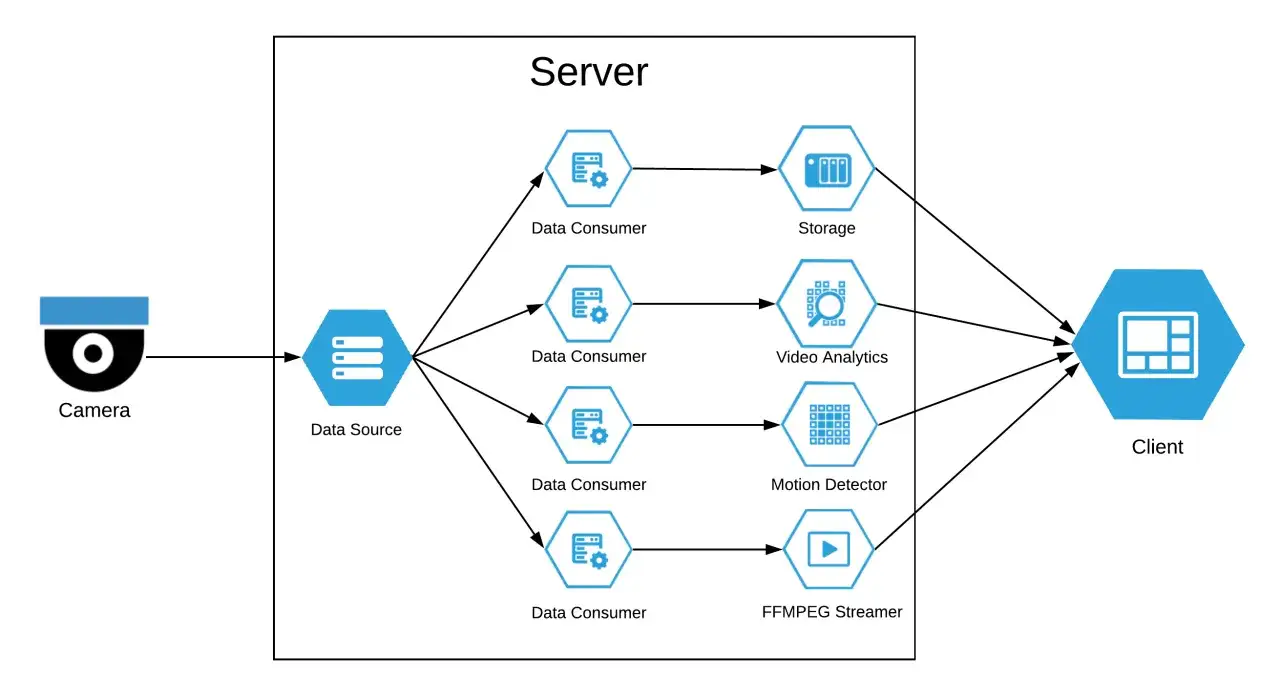

In a real live production chain, RTSP usually sits between the source and the delivery layer. A camera or encoder exposes the feed, a recorder or media server pulls it, and the server decides what viewers or operators should receive next.

1. Capture happens on the camera or encoder, usually with H.264 or H.265 video and AAC audio.
2. The device exposes an RTSP session that a recorder, NVR, or media server can request.
3. The media server may transmux the stream, which means repackaging the same encoded video into another delivery format without decoding it first.
4. If needed, the server may transcode it, which means decoding and re-encoding the media for a different bitrate, codec, or profile.
5. Viewers then receive the stream through a browser, app, or player that matches the target latency and compatibility goals.

This is why I see RTSP most often in CCTV, remote contribution, live event capture, and internal monitoring. It is very good at moving a feed from device to infrastructure; it is not automatically the best last mile for an audience. Once you see the stack this way, the real decision becomes whether RTSP should stay inside the system or be converted for viewers.

Why RTSP is still useful for cameras and local feeds

RTSP has lasted because it solves practical problems that come up again and again. Many IP cameras, NVRs, and encoders support it out of the box, which makes integration straightforward. On a controlled network, it is also a strong choice for previewing, monitoring, and feeding software that needs direct access to the source.

For operator use, a well-tuned LAN feed can feel close to real time, often in the low single-digit second range once encoder settings and player buffering are sensible. That is usually fast enough to judge exposure, framing, focus, or motion without adding unnecessary delivery overhead.

• It is device-friendly, which matters when you are dealing with mixed hardware from different vendors.
• It is simple to pull into monitoring tools, analysis systems, and recorders.
• It works well on managed networks, where you can control routing, authentication, and bandwidth.
• It keeps the source feed clean before you decide how to package it for wider delivery.

That makes RTSP especially valuable when the source and the production system are in the same building, which is still a very common setup for UK studios, venue teams, and security workflows. The moment you move beyond that controlled environment, though, the requirements change quickly.

When RTSP is the wrong final format

The biggest mistake I see is treating RTSP like a public web format. Browsers do not natively support it, and large audiences need a delivery layer that works through CDNs, mobile devices, and ordinary players without special plugins or browser hacks.

Format	Typical latency	Best for	Main trade-off
RTSP	Often low single-digit seconds on a good network	Camera ingest, local monitoring, private operator views	Poor browser support and limited public delivery
HLS	About 18-30 seconds in standard deployments	Broad compatibility, large audiences, CDN delivery	Higher latency
LL-HLS	About 3-5 seconds, sometimes lower in best-case setups	Near-live browser playback at scale	More tuning and less forgiveness than standard HLS
WebRTC	Often under 1 second to about 2 seconds	Interactivity, live calls, collaboration, real-time participation	More operational complexity and scaling cost

If I am building a public event site, RTSP stays behind the curtain. If I am building an operator console or a private security view, it can stay visible. The audience type should decide the protocol, not the other way around, and that leads directly to the setup choices that make the stream dependable.

How I would set up a reliable stream

The most dependable setups are usually the boring ones. I start with codec compatibility, network headroom, and a clear decision about the final output format, because those three choices prevent most of the issues people blame on the protocol itself.

1. Use H.264 video and AAC audio unless you have a strong reason not to. H.265 can save bitrate, but H.264 still moves through mixed hardware and software more cleanly.
2. Leave 20-30% headroom on the uplink. If a venue has a stable 10 Mbps upstream, I would not plan a 10 Mbps stream and hope for the best.
3. Keep the GOP at about 2 seconds if the feed will be repackaged for HLS or low-latency delivery. GOP means group of pictures, the interval between keyframes.
4. Prefer wired Ethernet and stable power. A UPS, or uninterruptible power supply, is often more valuable than one more software tweak.
5. Decide whether TCP or UDP fits the path. TCP is more forgiving through difficult networks, while UDP can feel snappier on clean links.
6. Test authentication, firewall rules, and the exact player path you will use on the day, not just a local preview.

If a media server is in the chain, I also check whether it can transmux without unnecessary transcoding. Repackaging the stream is cheaper and simpler than re-encoding it, and that usually keeps latency and failure points down. Once those basics are set, most of the remaining work is about avoiding the traps that make a good stream look broken.

Common mistakes that make RTSP look unreliable

When people say the stream is unstable, the real issue is often the network or the surrounding workflow rather than the protocol itself. RTSP gets blamed because it is the visible part, but the failure usually lives somewhere else.

• Using Wi-Fi for a critical live feed. It can work for testing, but it is a weak foundation for production.
• Running a bitrate with no safety margin. A stream sitting at the edge of available bandwidth has no room for spikes.
• Choosing a very long keyframe interval. That slows recovery, makes seeking clumsier, and can complicate repackaging.
• Expecting a browser to open the feed directly. If the delivery target is the web, you need a conversion layer.
• Ignoring NAT and firewall behaviour. NAT, or network address translation, is what makes internet-facing routing more awkward than a simple lab setup.
• Testing only on the same LAN. A feed that looks perfect inside the building can fail quickly once it crosses a VPN, a firewall, or an unpredictable uplink.

Most of these are system mistakes, not protocol failures. That distinction matters because it points you to the real fix: simplify the path, reduce the number of moving parts, and decide early what the audience should actually receive.

The decision I would make for a live project

For most live video projects, I would not ask whether RTSP is good or bad. I would ask where it belongs. That framing is more useful because different jobs in the chain have different needs.

Goal	Best fit	Why it works
Internal operator view	RTSP direct	Simple, direct, and easy to monitor on a controlled network
Public browser audience	RTSP in, HLS or LL-HLS out	Good compatibility and scalable delivery
Interactive event or live call-in	RTSP in, WebRTC out	Low latency and two-way participation
Hybrid production	RTSP at the source, multiple outputs at the edge	One ingest feed can serve different audience needs

For a UK production team, this split is usually the cleanest way to think about it: RTSP inside the venue or facility, browser-safe delivery outside it. That keeps local monitoring simple while avoiding support calls from viewers who cannot open the feed. The last step is making sure the whole chain behaves the same way when it is under real load.

The checks I would never skip before going live

If I had to reduce the whole topic to one line, I would say that RTSP live streaming is a contribution method, not a viewer format. Once that is the design assumption, the rest of the stack falls into place much more cleanly.

• Confirm the camera, encoder, and media server all agree on codec, bitrate, and audio settings.
• Watch the exact path your audience or operators will use, not just a local test window.
• Verify sync, motion smoothness, and delay on a device that matches the real viewing environment.
• Keep a fallback player, backup output, or parallel recording running if the feed matters commercially.

When those pieces are aligned, the protocol becomes boring in the best possible way: it just works, and the rest of your live stack can focus on delivery instead of firefighting.
