RTSP is the control layer that lets a player, NVR, or encoder request a live stream and keep that session active. The short answer is simple: the standard RTSP port is 554, secure RTSP is registered on 322, and 8554 is a common alternate when 554 is unavailable. In practice, the port is only part of the story, because the real failures usually come from firewalls, NAT, or a camera that is streaming correctly but not on the port the client expects.
The essential RTSP port facts at a glance
- 554 is the registered default port for RTSP.
- 322 is the registered port for RTSPS, the secure variant over TLS.
- 8554 is a registered alternate RTSP port that vendors often use as a fallback.
- RTSP controls the session; the actual media may travel separately over RTP and RTCP.
- Many connection problems are caused by firewall rules, NAT, or a mismatch between the URL and the device settings.
What port RTSP uses by default
The IANA registry lists RTSP on 554 for both TCP and UDP, and RFC 7826 treats 554 as the default when no port is given in the RTSP URI. That is why most camera manuals, NVR dashboards, and streaming notes still point to 554 first. If a device is labelled RTSPS, the registered port is 322; if you see 8554, that is the registered alternate many vendors use when they want to avoid a conflict with an existing service.
| Service | Port | Transport | Typical use |
|---|---|---|---|
| RTSP | 554 | TCP / UDP | Standard default for session control |
| RTSPS | 322 | TCP / UDP | Secure RTSP over TLS |
| RTSP alternate | 8554 | TCP / UDP | Fallback port when 554 is blocked or already used |
If you only remember one thing, remember 554. The more useful question is how that port behaves once the stream leaves the device and enters a real network, which is where most confusion starts.
How RTSP fits into a live video pipeline
RTSP is not the video itself; it is the control channel. I usually think of it as the conversation that sets up the stream, negotiates options, and tells the server when to play, pause, or stop. The actual audio and video payload often travels separately with RTP and RTCP, which means the control port can be open while the media path is still blocked.
- The client asks for the stream.
- The server responds and negotiates the session.
- The media flow starts, often over separate RTP and RTCP ports.
- RTSP keeps control over the session while the feed is live.
- Some setups tunnel the media over the same TCP connection, which is handy when UDP is filtered.
That split between control and media is useful when it works and frustrating when it does not, so the next section looks at the failures I see most often in the field.
Why the port number is often right but the connection still fails
In real deployments, the port is usually the easiest part to verify. The harder part is confirming that the device, router, and client all agree on the same path and transport mode. I have seen plenty of setups where 554 was correct, yet the stream still failed because the camera was handing off media on separate ports that the firewall never allowed through.
| Symptom | Likely cause | Best next check |
|---|---|---|
| Connection times out | 554 is blocked or the port forward is wrong | Verify the router, firewall, and external port mapping |
| RTSP opens but there is no picture | RTP and RTCP are blocked, or the transport mode does not match | Allow the media ports or force interleaved TCP if the device supports it |

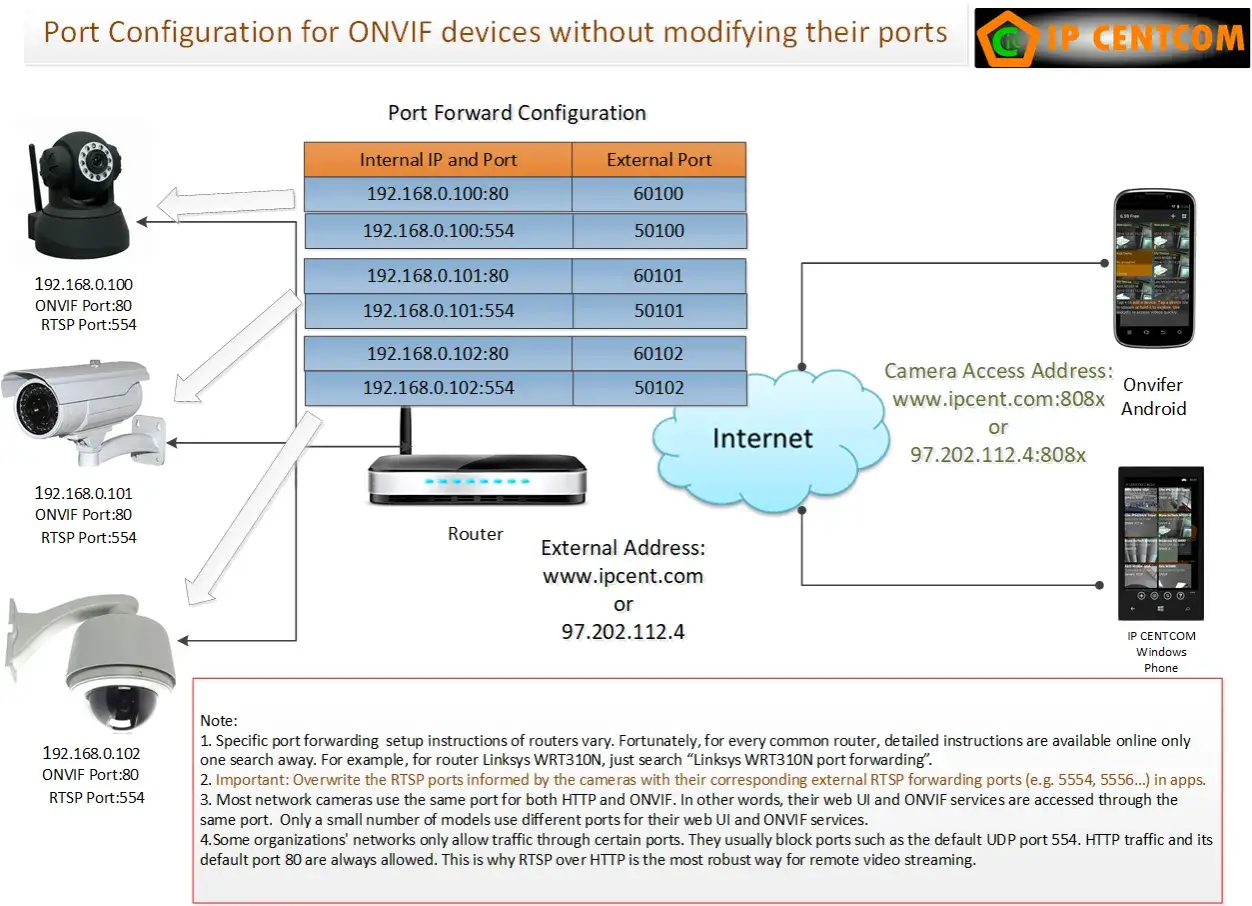

| It works on the local network but not remotely | NAT or public IP mapping is wrong | Check the public port, public address, and router forwarding rules |
| Only one camera fails | That device may be using 8554 or a custom port | Inspect the stream settings in the device admin panel |
In my experience, "port problem" often means the control channel is reachable but the media leg is not. Once you separate those two, the troubleshooting becomes a lot more precise.
RTSP versus HTTP-based streaming in everyday production
RTSP is a strong fit when you need direct access to cameras, internal monitoring, or low-latency ingest into a workflow. HTTP-based streaming is usually better when the goal is broad playback, simpler firewall traversal, and easy browser delivery. They solve different problems, and the cleanest setup depends on whether you are distributing to a small technical team or to a larger audience.
| Use case | RTSP | HTTP-based streaming |
|---|---|---|
| Best for | Cameras, NVRs, and live ingest | General playback and wider distribution |
| Latency | Usually lower | Often higher, especially with segment-based delivery |
| Network behaviour | Can be fussier with firewalls and NAT | Usually easier through proxies and corporate networks |
| Operational feel | More technical | Typically simpler for viewers |
When I am deciding between the two, I start with the use case, not the protocol name. That leads naturally to the final checks I would run before I assume the port itself is broken.
The checks I would make before blaming the port
- Confirm the exact RTSP URL, including the port number and path.
- Test 554 first, then try 8554 if the default is blocked or already used.
- Check whether the stream needs separate RTP and RTCP ports, or whether it can tunnel over TCP.
- Make sure the client and server both agree on
rtsp://versusrtsps://. - Verify the device admin panel, because many cameras let you change the RTSP port without changing the rest of the stream settings.
- Keep the stream behind authentication and tight firewall rules if you need to expose it beyond the local network.
When a live feed misbehaves, I do not assume the answer is to open more ports; I first confirm the exact RTSP URL, the expected transport, and whether the device is meant to use 554, 322, or 8554. That habit catches most problems faster than random firewall changes, and it keeps the setup cleaner if you later need to expose the stream across a wider network.
