Transport Stream is still one of the most useful building blocks in live video in 2026, especially when the job is to move clean, time-sensitive media between encoders, contribution links, and delivery systems. A TS live stream is not really about glamour; it is about predictable packet flow, stable timing, and a workflow that can survive real networks. In this article I look at what TS carries, where it fits in a modern live chain, and how to configure it so the picture does not fall apart when traffic or latency starts to rise.
What matters most before you build one
- MPEG-TS breaks audio and video into 188-byte packets and adds timing plus programme tables.
- It works best as an ingest or contribution layer, not as a browser-first delivery format.
- For internet delivery, TS usually sits upstream of HLS, CMAF, SRT, or WebRTC.
- Stable bitrate, sensible GOP length, and frequent signalling matter more than exotic codec settings.
- The most common failures are packet loss, clock drift, and using TS where lower latency or browser delivery is needed.
What a transport stream really carries
MPEG-TS is a packetised container for live media, not just a file extension at the end of a video name. Each packet is 188 bytes, which sounds oddly small until you realise that fixed-size packets are easier to schedule, retransmit, and recover after loss.
Three timing ideas matter most. PAT and PMT tell the receiver which programmes and elementary streams exist; PTS and DTS carry presentation and decode timing; PCR keeps the receiver’s clock aligned with the sender. If those tables arrive too sparsely, late joiners wait longer and channel changes feel sluggish.
I treat TS as a transport layer, not a final viewing format. It is usually the disciplined middle of the chain, the part that keeps timing honest before the stream is repackaged or handed to something more viewer-facing. That leads directly to the actual live workflow.
How the signal moves from encoder to viewer

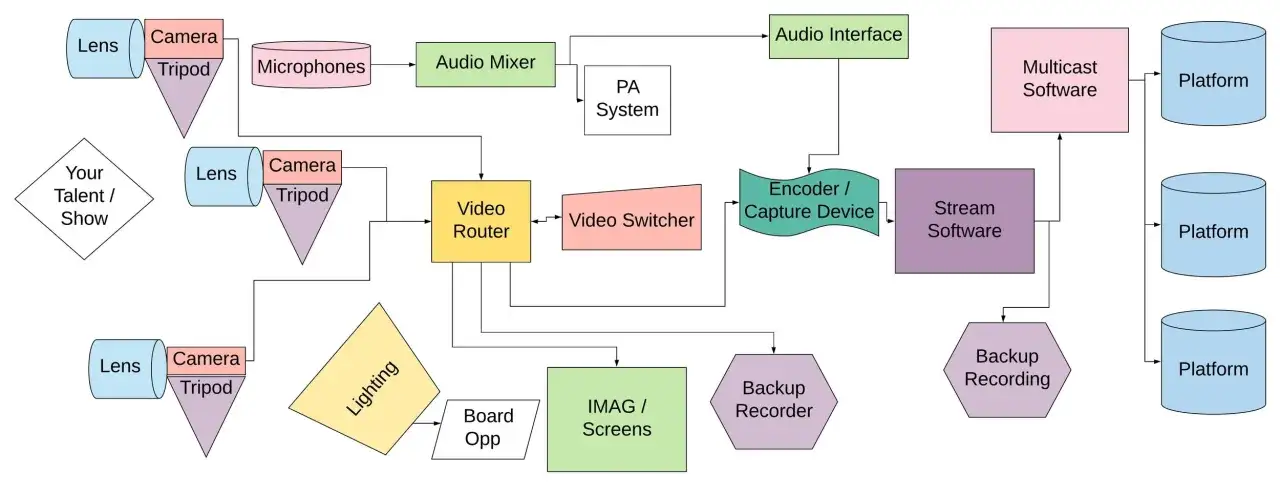

The practical chain is simple: camera or switcher, encoder, muxer, network path, receiver, player. The encoder compresses the picture and sound, the muxer wraps them into transport stream packets, and the network carries those packets using a transport that fits the job.
On a managed network, plain UDP or RTP can be enough. Over the public internet, SRT is usually a better fit because it adds retransmission and latency control without forcing you into a full web delivery stack. When the end goal is a webpage, I usually let TS live only on the contribution side and hand off to HLS or another packaging layer before the viewer ever presses play.
If I am testing with FFmpeg, the first thing I want to know is whether I am remuxing cleanly or transcoding unnecessarily. Remuxing keeps the original essence streams intact, which makes it easier to separate transport problems from codec problems. A common UDP payload size is 1316 bytes, because it carries seven 188-byte TS packets without fragmentation. Once the path is clear, the next decision is whether TS is the right container for the job at all.
When TS is the right choice and when it is not
I still reach for TS when I need predictable packet behaviour, simple broadcast-style carriage, or compatibility with older headend and IPTV gear. It is also useful when I want to feed an HLS packager or a downstream distribution system that already expects MPEG-TS on ingest.
| Option | Typical latency | Best fit | Main trade-off |
|---|---|---|---|
| MPEG-TS over UDP or RTP | Sub-second to a few seconds | Managed networks, contribution, multicast | Fragile on the open internet if packets drop |
| MPEG-TS over SRT | About 1-4 seconds | Remote contribution, field links, unreliable networks | Needs compatible endpoints and tuning |
| HLS | About 6-30 seconds, or a few seconds with low-latency variants | Browser and device distribution at scale | More packaging overhead, higher latency |
| WebRTC | Sub-second to around 1 second | Interactive live video and audience participation | More complex, less ideal for simple broadcast-style delivery |
The real comparison is not “which protocol is best” but where TS should stop and what should take over next. If the audience is on the web, TS usually stops at ingest. If the audience is another production system, TS can be the whole route. That distinction saves a lot of unnecessary complexity.
How I would configure a reliable broadcast chain
I start with a stable frame rate and a bitrate the uplink can actually hold. In the UK, 25 fps or 50 fps often makes sense depending on the source, and I prefer to match the GOP length to the delivery plan rather than guessing. For low-latency or segment-aligned workflows, a keyframe every about 2 seconds is a safe starting point. For UK events, the uplink is often the first bottleneck, so I test the network before I chase codec tweaks.
- Use AAC-LC audio at 48 kHz, usually 128-192 kbps for stereo.
- Keep UDP payloads aligned to seven TS packets where possible, which gives 1316-byte payloads and avoids unnecessary fragmentation.
- Make sure PAT and PMT repeat frequently enough for late joiners and channel changes.
- Watch PCR stability, because drift can create stutter even when bitrate looks fine.
- Prefer CBR or tightly capped VBR when the network path is sensitive to bursts.
- Dry-run for at least 10-15 minutes, not just a short clip, so you see drift and buffering behaviour.
I also run an analyser such as ffprobe on a test capture. It catches timestamp gaps, stream mapping mistakes, and codec mismatches faster than the player does. Once the chain survives that kind of check, the stream is usually ready for real traffic. From there, the most common failures become much easier to recognise.
The mistakes that break TS streams fastest
The first mistake is treating TS like a magic fix for a bad network. It is not. If the uplink is unstable, packets will still be lost, and the receiver can only recover so much before the picture freezes or desynchronises.
The second mistake is using a long or messy GOP. If keyframes are too far apart, joining the stream takes longer and segmenting becomes less clean. That is especially painful when the TS feed is going into HLS packaging or another platform that expects tidy boundaries.
The third mistake is ignoring timing diagnostics. Continuity counters, PCR jitter, and audio/video drift are not academic details; they are the early warning signs of trouble. Continuity counters are the small sequence checks inside TS packets that tell you whether anything went missing or arrived out of order. When I see them moving in the wrong direction, I fix the transport before I blame the codec.
The fourth mistake is pushing raw TS straight to the viewer when a delivery layer should sit in front of it. For web audiences, the last mile usually needs HLS, CMAF, or WebRTC. TS can be part of the chain, but it is rarely the whole chain. That is why the next question is not whether TS exists, but where it still earns its place.
Where TS still earns its place in 2026
When the production path is controlled, TS is still a very sensible choice. I would keep it in the chain for contribution feeds between production sites, IPTV or headend ingest, source material for HLS packaging, and multicast or managed venue distribution. In all of those cases, the format is doing the unglamorous but important work of keeping media timed and recoverable.
My rule is simple: if the path is controlled, the receiver is another professional system, and timing predictability matters more than ultra-low latency, TS is a strong choice. If the audience is on the open web, the network is messy, or interaction is the main goal, I move to SRT, HLS, or WebRTC and let TS stay behind the scenes. That is usually the cleanest way to keep live video dependable without overengineering the last mile.
