In live video, transport choice is not a minor detail. rtsp over udp usually means RTSP is handling session control while RTP carries the audio and video packets over UDP, with RTCP adding feedback about loss and timing. That combination can keep latency tight, but it also exposes jitter, packet loss, and firewall behaviour very quickly.
I am going to break down how the session is set up, why teams choose it, where it fails, and what I would check first before using it on a camera feed, encoder, or monitoring chain.
The main trade-off is lower delay versus less tolerance for network problems
- RTSP is the control layer; RTP is usually the media path when UDP is involved.
- UDP keeps latency low because it does not wait to retransmit missing packets.
- Most real deployments use RTSP control plus UDP media, not a pure all-UDP session.
- A separate UDP port pair per stream is common, unless RTP and RTCP are multiplexed.
- The biggest practical risks are packet loss, jitter, firewall rules, and lack of bandwidth headroom.
What this transport choice really means
The phrase is often used loosely. In practice, RTSP is the control layer, RTP carries the media, and RTCP reports on the session. The current RTSP model allows UDP, but in day-to-day streaming the control path is often still TCP because it is easier to traverse networks, while the media path uses UDP to stay responsive.
That distinction matters because you can have a healthy RTSP session and still get a poor picture if the UDP leg is losing packets. I think of it this way: RTSP negotiates the stream, UDP delivers it, and RTP/RTCP explain what the network is doing to it. Once that separation is clear, the setup steps make a lot more sense.
How a stream is established and where the media actually travels
When a client connects, the protocol usually follows a simple pattern.
- DESCRIBE asks the server for session details, often including the codec and timing information.
- SETUP negotiates how media will move, including the UDP port pair the client wants to use.
- PLAY starts the session and the server begins sending RTP packets to the agreed ports.
- RTCP packets carry feedback about loss, jitter, and timing so the receiver can track quality.
- TEARDOWN ends the session cleanly when the stream is no longer needed.
The useful detail is the port negotiation. A camera or encoder may answer on the RTSP control port and still send media from separate UDP ports, so opening only the control port is usually not enough. If RTP and RTCP are multiplexed, one UDP flow can carry both, but many live systems still use the classic two-port pattern. That negotiation is also where the real trade-off starts to show, especially when you compare it with TCP.
Why UDP is attractive for live video
For live monitoring, preview feeds, and time-sensitive contribution, UDP is attractive because it avoids retransmission delay. If a packet arrives late, it is usually worse than useless for a moving picture. Dropping it and moving on is often the lesser evil.
| Criterion | UDP media transport | TCP interleaving | Practical read |
|---|---|---|---|
| Latency | Usually lower | Often higher | UDP is better when delay matters more than perfect delivery. |
| Packet loss handling | Loss is visible immediately | Retransmissions can hide some loss | TCP may look smoother, but it can add stalls. |
| Firewall friendliness | Weaker | Stronger | TCP is easier to pass through restrictive networks. |
| Best fit | Controlled LANs, local monitoring, camera preview | Remote access, unstable links, strict networks | Choose based on the path, not the acronym. |
If the link is clean, UDP often gives a tighter, more immediate picture. If the link is noisy, TCP can look calmer even if the end-to-end delay rises. That is why the better option depends less on ideology and more on how predictable the network really is.
Where UDP becomes the wrong fit
UDP starts to look weak when the path is shared, filtered, or simply hard to trust. A Wi-Fi hop, a VPN tunnel, a busy office uplink, or a public internet route can introduce enough variation for the stream to show obvious glitches.
- High packet loss turns into visible blocking, short freezes, or audio artefacts.
- Heavy jitter forces the player to buffer more, which pushes latency up anyway.
- Strict firewalls or NAT can block the negotiated media ports even when RTSP control works.
- Remote delivery over unknown networks is harder to predict than local monitoring on a managed LAN.
- Archive or compliance workflows usually care more about completeness than absolute immediacy.
A jitter buffer can smooth small timing differences, but it cannot recover packets that never arrive. That is the point where tuning matters more than protocol preference, so the next step is to make the stream as robust as possible.
How I would tune a stream for stability
When I want UDP media to behave well, I keep the deployment simple and boring. That usually gives better results than trying to compensate later with a bigger buffer.
Keep the media path simple
Use wired Ethernet where possible, keep the feed on a dedicated VLAN or SSID if you can, and avoid sharing the same path with large uploads or backups. In practice, the cleanest streams are the ones that do not have to compete for airtime or bandwidth.
Leave honest bandwidth headroom
I like to see at least 20 to 30 percent spare capacity on the real path, not the theoretical one. An 8 Mbps stream should not sit on a link that is already effectively full, because small bursts and background traffic are enough to push it into loss.
Open the right ports, not just the RTSP port
Port 554 may carry the control session, but the media usually travels on separate UDP ports negotiated during SETUP. If those media ports are blocked, the negotiation can succeed while the picture never appears. That is one of the most common reasons an install works in the lab and fails at the edge of a real network.

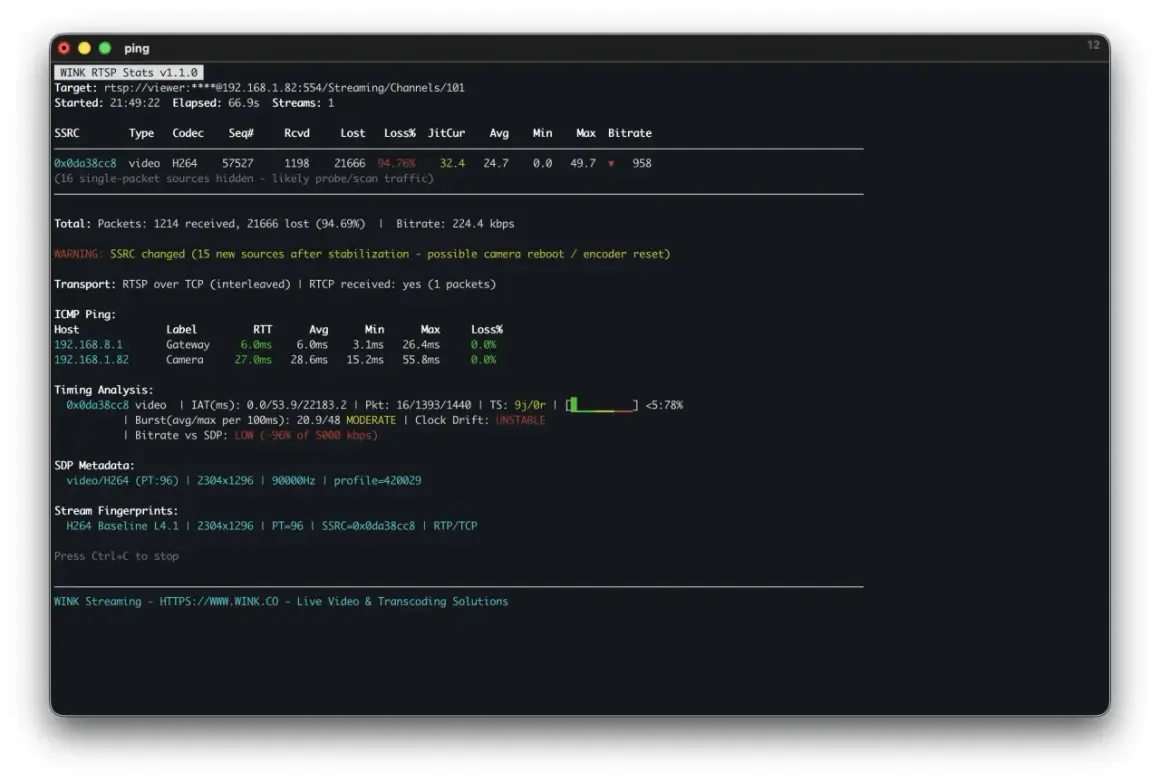

Watch RTCP and player stats
Loss, jitter, and buffer underruns usually show up in those numbers before they become obvious on screen. I treat them as early warning signals, not optional diagnostics, because they tell you whether the stream is actually healthy or just barely hanging on.
Once those basics are in place, the remaining failures are usually self-inflicted, and they are easier to spot than people expect.
The mistakes that cause the most trouble
I see the same mistakes again and again, and none of them are exotic.
- Opening only the RTSP control port and forgetting that the media needs UDP ports too.
- Testing on a quiet LAN and then deploying onto Wi-Fi, VPN, or a congested office network.
- Running bitrate too close to the actual available capacity.
- Ignoring RTCP warnings until the image has already broken up.
- Treating UDP as if it were a quality feature instead of a low-latency transport choice.
Most of these are not protocol flaws. They are environment mismatches. So the last question is not whether UDP is good or bad, but when it is the right fit.
The decision rule I use for live video in 2026
If I control the network, need the lowest practical delay, and can keep the path clean, I am comfortable using UDP for contribution feeds, local monitoring, and camera previews. If the route crosses the public internet, a VPN, or a network I do not control, I become much more conservative and accept extra delay in exchange for a transport that survives bad conditions more gracefully.
For UK studios, venues, and CCTV-style deployments, that usually means treating UDP as an internal-network tool first. When the path is predictable, it works well. When the path is not, I would rather add a little latency than spend the day chasing intermittent packet loss. That is the practical answer I trust: use the transport that matches the network, the latency budget, and the value of every lost frame.
